● DIGITALLY PROGRAMMABLE GAIN: G = 1, 10, 100
● LOW GAIN ERROR: 0.025% max
● FAST SETTLING: 2.8µs to 0.01%
● 16-PIN CERAMIC DIP
APPLICATIONS
● DATA ACQUISITION AMPLIFIER
● FIXED-GAIN AMPLIFIER
● AUTOMATIC GAIN SCALING
DESCRIPTION
The PGA102 is a high speed, digitally programmable gain amplifier.
CMOS/TTL-compatible inputs select gains of 1, 10 or 100V/V.
Each gain has an independent input terminal, providing an input multiplexer function.
On-chip metal film gain-set resistors are laser-trimmed to provide excellent gain accuracy.
High speed input circuitry allows multiplexing of high speed signals.

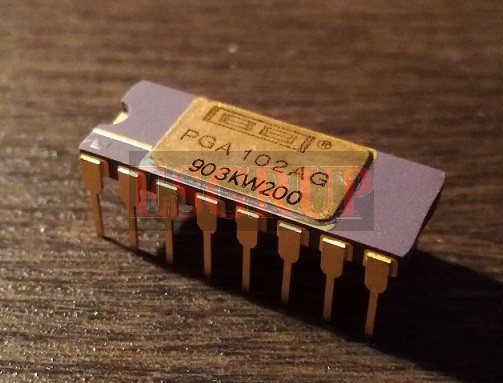

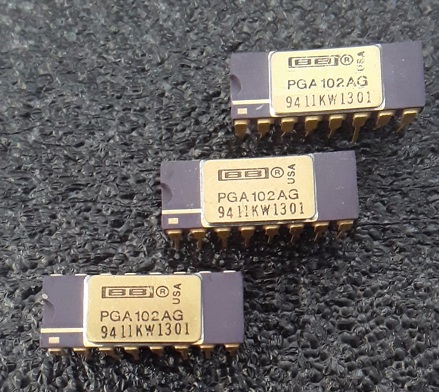

The PGA102AG is in 16-pin ceramic DIP packages.
|
